Authors:
Wayne Liu, Rebecca Hsiao, Kenter Su, Alex Kao
Abstract:
A set of movable supports is proposed that includes a plunger that allows the metal parts to be quickly reoriented, enabling reliable bidirectional guidance.
Background:
The existing Self Service Product does not have enough space to incorporate a guiding structure so that it can be difficult to guide the currency and coin handling mechanisms back into the cabinet. We plan to combine the brackets to achieve bidirectional guidance.
Description:
The set of movable brackets includes a plunger, and two holes are drilled into the corresponding iron pieces so the plunger can be positioned at any point and locked in place. This design allows the mechanism to achieve bidirectional guidance. See the Figures below:

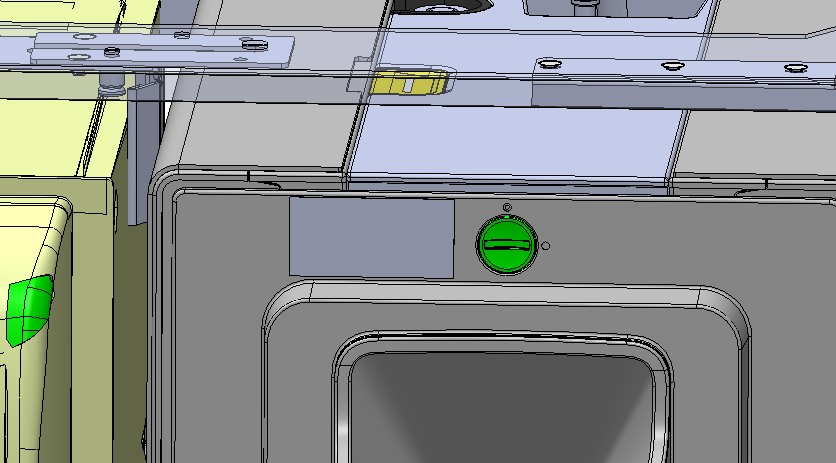

A single inclined surface is provided to increase the available guiding space.

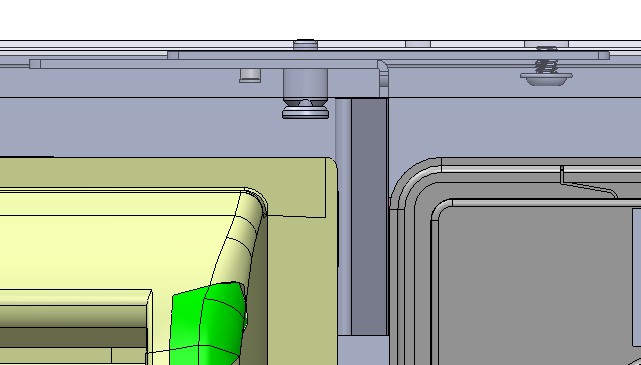

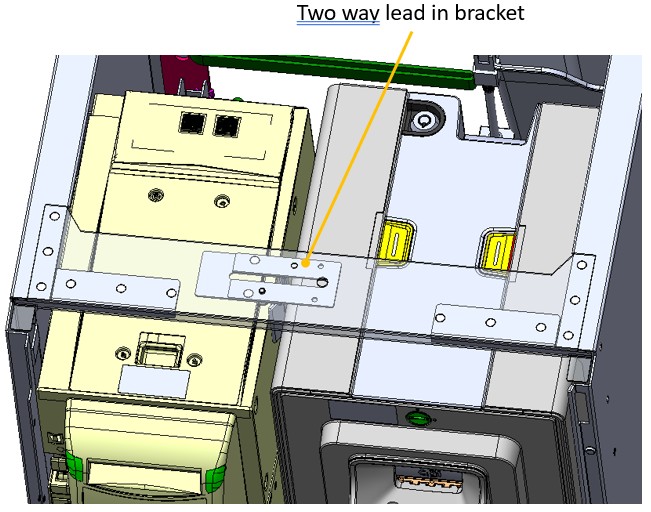

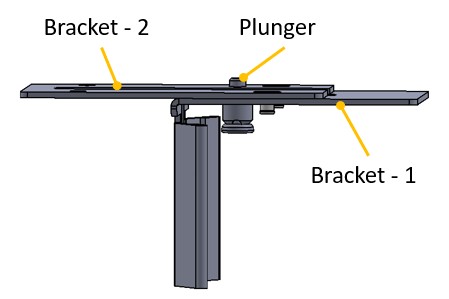

Design concept of bracket

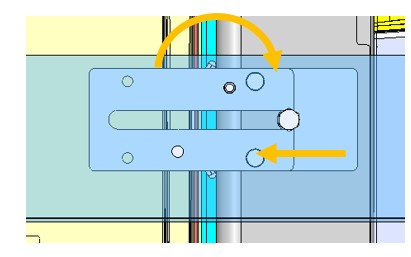

Rotate bracket, then push it to left side.
Transfer the lead-in function to the other side.
Usages:
The requirements for left and right lead‑ins can be adjusted using brackets.
Claims:
In a confined space, a set of brackets can be used to meet the requirement for guiding on both sides.
